8 Times/Hour Batch Time Internal Mixer Banbury Kneader Line with 29000 KG Capacity

Name: 8 TimesHour Batch Time Internal Mixer Banbury Kneader Line with 29000 KG Capacity
Brand: Mixer
Price: 20 USD

Quality 8 Times/Hour Batch Time Internal Mixer Banbury Kneader Line with 29000 KG Capacity for sale

Place of Origin : China

Condition : New

Batch Time(times/hour) : 8 times/hour

Total Capacity(L) : 110 L

Video outgoing-inspection : Provided

Machinery Test Report : Provided

Warranty of core components : 5 years

Core Components : PLC, Engine, Motor

Brand Name : Mixer

Model Number : X(S)M-110>

Voltage : 380V

Dimension(L*W*H) : 6000x2850x4450mm

Warranty : 1 Year

Key Selling Points : Energy saving

Power (kW) : 250 kW

Weight (KG) : 29000 KG

Showroom Location : None

Applicable Industries : Manufacturing Plant

Type : Rubber Mixer

Certtificate : CE

Model type : production and Lab type

After-sales Service Provided : Field installation, commissioning and training

After Warranty Service : Video technical support

Certification : CE

Marketing Type : New Product 2020

Packaging Details : film wrap into container

Port : Shanghai or Ningbo

Supply Ability : 60DAYS

Price : $20,000.00 - $100,000.00/sets

MOQ : 1set

Delivery Time : 60days

Payment Terms : T/T

Contact Now

Product Description

Application:

It is used for rubber plasticizing,stock mixing.

Structure features:

All of inside wall , discharge door, ram are of drill hole cooling, and rotor is of hollow spray cooling.

Contacting faces with stock such as mixing chambers inside wall, discharge door, ram are received hardening treatment.

Rotor bearing is of rolling bearing.

Axial seal of rotor is adopted with hydraulic seal, and with adjustable seal ratio.

Operating of the discharge door is driven by the double-rack tilting hydraulic cylinder and with plate-inserted or crank locking.

The transmission system may adopt a dual-output hardened-gear speed reducer, and used with gear coupling (joint) or the cross universal coupling drive, the transmission system is structured with stationary state, low noise, high efficiency and long-service life.

Specification

Model <Item>		X(S)M-1.5>	X(S)M-50>	X(S)M-80>	X(S)M-110>	X(S)M-160>	X(S)M-250/20>	X(S)M-270>	X(S)M-370>
(L) Total volume>		1.5>	50>	80>	110>	160>	250>	250>	395>
Filling factor>		0.6-0.8>	0.6-0.8>	0.6-0.8>	0.6-0.8>	0.6-0.8>	0.6-0.8>	0.6-0.8>	0.6-0.8>
(r/min) Rotor speed>		0-80>	4-40 (40)>	4-40 (40)>	4-40 (40)>	4-40 (30)>	20>	4-40>	6-60>
(MPa) Max ram pressure>		Max0.3>	0.27>	0.37>	0.58>	0.5>	0.24>	0.52 0.6(Hydraulic)>	0.54 0.6(Hydraulic) >
(KW) Main motor power>		37AC>	90DC(95AC) >	200DC(210AC) >	250DC(240AC) >	355DC (355AC) >	240AC >	1250DC (1250/1500AC) >	2x1250DC>
Over size >	L>	2,700>	5,560>	5,800>	6,000>	8,900>	7,500>	7,450>	11,150>
	W>	1,200>	2,700>	2,500>	2,850>	3,330>	3,900>	4,140>	4,960>
	H>	2,040>	3,250>	4,155>	4,450>	6,050>	4,730>	6,270>	7,040>
(kg) Total weight>		2,000>	16,000>	22,000>	29,000>	36,000>	33,500>	50,000>	78,000>

Packaging & Shipping

8 Times/Hour Batch Time Internal Mixer Banbury Kneader Line with 29000 KG Capacity

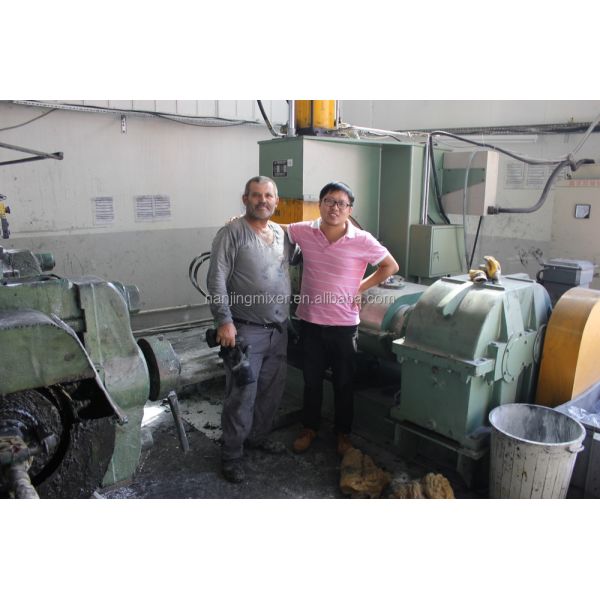

Customer visit
