Product Description
Main application field for the Rubber Injection Compression Molding Machine:
Rubber Injection Compression Molding Machine is ideal for the production of various natural&synthetic rubber parts,oil & heat resistant rubber parts, silicone parts,etc.
----CE safety standard
- Ergonomic low bed structure for easy opeartion
- Advanced proportional pressure&speed control from PLC
- Automated de-moulding and handling devices are optional
- Option to make silicone material
- Customized specifications are available
- Vertical/Horizontal structure with FIFO type injection systems
Technical Specification: | Model | XLB-V200T | XLB-V300T | XLB-V400T | XLB-V500T |
| Clamping force(ton) | 200 | 300 | 400 | 500 |
| Stroke(mm) | 500 | 500 | 600 | 600 |
| Platen size(mm) | 600x600 | 700x700 | 700x800 | 800x850 |
| Main piston diameter(mm) | 355 | 450 | 500 | 560 |
| Max.platen gap(mm) | 550 | 550 | 700 | 700 |
| Min. Mold thickness(mm) | 60 | 60 | 100 | 100 |
| Core Lifter stroke (mm) | 200 | 200 | 250 | 250 |
| Injection unit |
| Injection volume (CC) | 2000 | 3000 | 4000 | 5000 |
| Injection pressure (Mpa) | 220 | 220 | 205 | 205 |
| Screw diameter(mm) | 45 | 45 | 55 | 55 |
| Nozzle aperture(mm) | 6 | 6 | 7 | 8 |
| Others |
| System pressure (Mpa) | 21 | 21 | 21 | 21 |
| Horse Power(HP) | 15 | 20 | 25 | 30 |
| Heater power (KW) | 19 | 22 | 27 | 31 |
| Total power(KW) | 36 | 40 | 52 | 58 |
| Weight(Kg) | 7200 | 9300 | 11700 | 14700 |
| Dimension(LxWxH:mm) | 2700x1200x3600 | 3100x1300x4000 | 3300x1400x4500 | 4000x1600x4500 |
Notes: the table only lists out the normal popular standard models, more special larger vertical rubber injection moulding machine can be customized to order. Exhibition

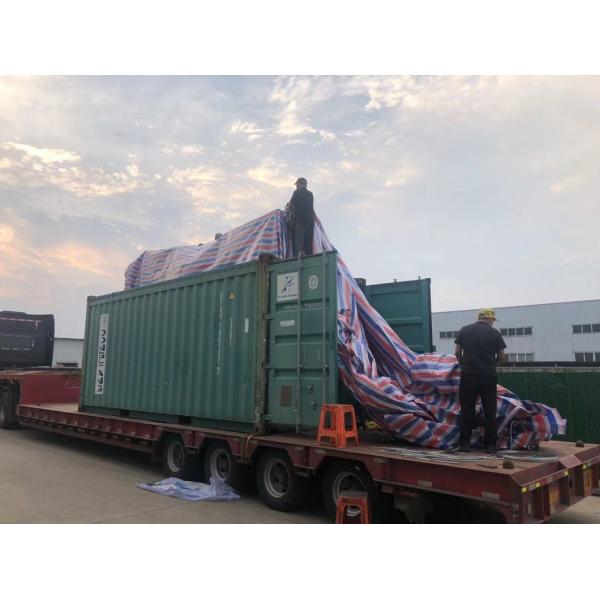

Packaging & Shipping
The rubber injection molding machine is packaged well by the stretch film first,and fixed professionally by the strong (solid) steel wire ropes,ensuring the machines remain still and won't slide in the container during the long distance of land and sea transportation, and reach the clients factories safely.
After Sales Service
We supply quick after sales service, including online consultation,instruction and also onsite face-face service if required by the clients.
We have professtional after sales serivce team who can give you satisfactory quick response,including technical questions,trouble-shooting,installation,etc.
Our business principle is that :
Move ahead along with the spirit of "Responsibility& Sincerity for Customers" and "Cooperative&Enterprising Team" to "Mold a Better Future Together ".
It is our promise and duty to execute the 3 No worries for clients:
No worries before order,
No worries after order,
No worries in produciton.
