Product Description
Oil Seal Metal Case Facing & Chamfering Machine:

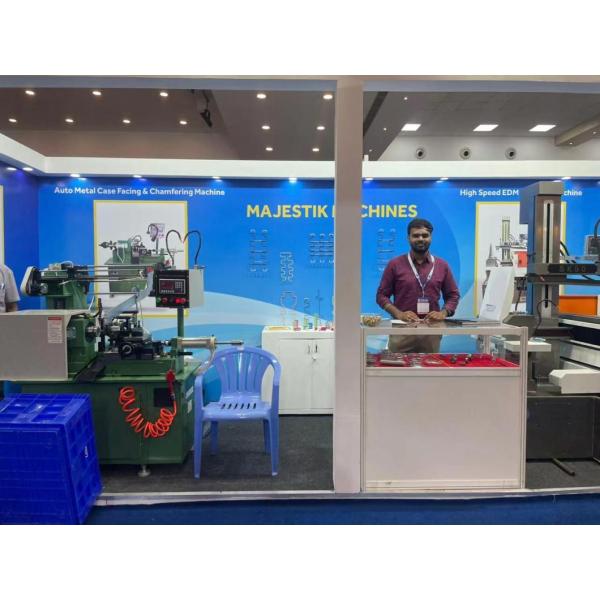

It is applicable for facing & chamfering of metal parts such as metal case,metal sleeve,metal cup. 1.Automatic Feeding of Metal Cases on a Die for Facing or Chamfering. High Efficiency & precise processing. 2.Loading the Metal Cases manually in line in the feeding conveyor→ Metal Cases are delivered forward by the Conveyor → Robot Grip & Feeds Metal Case on the Collet → Automatic Facing or Chamfering→Finished Metal Cases are ejected out. Technical specification: Model:D30-100 Spindle spec: 0640 Motor power: 2.2KW-1450 RPM Inverter: EM730-2.2KW Spindle speed: 0-1200 RPM Power system: pneumatic Control system: single board computer microcomputer control Processing range: diameter 30-100mm, height 5-30mm Scope of application: flat machining&chamfering of round workpieces Processing speed: 1000 PCS/Hr Power supply: AC380V/50HZ Dimension: L1.5xW1xH1.45 m Weight:420KG Exhibition
Packaging & Shipping
The oil seal metal caes facing&chamfering machines are packaged well by strong wooden case,ensuring the machines non damage during the long distance of land and sea transportation, and reach the clients factories safely.
After Sales Service
We supply quick after sales service, including online consultation,instruction and also onsite face-face service if required by the clients.
We have professtional after sales serivce team who can give you satisfactory quick response,including technical questions,trouble-shooting,installation,etc.
Our business principle is that :
Move ahead along with the spirit of "Responsibility& Sincerity for Customers" and "Cooperative&Enterprising Team" to "Create a Better Future Together ".
It is our promise and duty to execute the 3 No worries for clients:
No worries before order,
No worries after order,
No worries in produciton.
