Name: Video Technical Support for Liquid Silicone Rubber Injection Molding Machine After
Brand: Geekung
Price: 25 USD

Place of Origin : Jiangsu, China

Condition : New

Video outgoing-inspection : Provided

Machinery Test Report : Provided

Warranty of core components : 2 years

Core Components : PLC, Engine, Bearing, Motor, Gear

Brand Name : Geekung

Machine Type : Rubber Injection Machine

Voltage : 220V/380V/415V/440V/480V

Dimension(L*W*H) : 2275X1705 X2900

Weight : 8000

Warranty : 1 Year

Key Selling Points : Famous brand PLC

Showroom Location : Turkey

Applicable Industries : Manufacturing Plant

Press : silicone rubber injection molding machine

Power(W) : 5.5kw

After-sales Service Provided : Field installation, commissioning and training

After Warranty Service : Video technical support

Certification : CE,ISO

Marketing Type : New Product 2020

Packaging Details : plastic film packed in container

Port : Shanghai

Supply Ability : 10 Set/Sets per Month

Price : $25,000.00/sets >=1 sets

Payment Terms : T/T

Contact Now

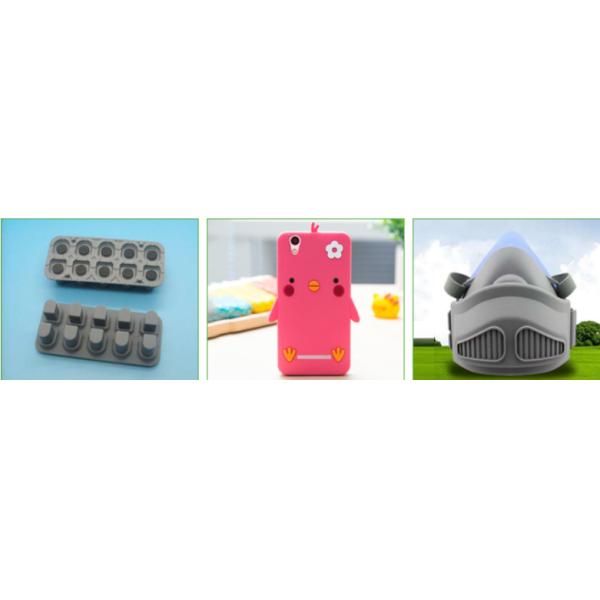

Used in producing below products....

Video Technical Support for Liquid Silicone Rubber Injection Molding Machine After Machine detail discription:

Specification

Specification:

Model		JC-RH50-250CC	JC-RH65-250CC	JC-RH200-1000CC(A)	JC-RH200-1000CC(B)	JC-RH260-1500CC	JC-RH300(A)	JC-RH300(B)
Shot Voolume	C.C	300	300	(1000)~1500	(1000)~1500	(1500)~2000	(2000)~3000	(2000)~3000
Injection pressure	Kg/cm2	1700-1800	1700-1800	1700-1800	1700-1800	1700-1800	1700-1800	1700-1800
Lnjection Hydraulic pressure	Kg/cm2	150	150	150-160	150-160	150-160	150-160	150-160
Screw Diameter	mm	32	32	45	45	45	50	50
Screw Speed	Rpm/min	0-120	0-120	0-120	0-120	0-120	0-120	0-120
Material Size	mm	10×30	10×30	12×50	12×50	12×50	15×60	15×60
Clamping Force	TON	60	60	200	200	260	300	300
Piston Stroke	mm	360	370	460	460	580	510	510
Plate Size	mm	350×380	290×320	480×500	550×620	520×580	650×730	550×650
Space Between Tie Bar	mm	445	390	575	675	645	790	690
Piston Diameter	mm	180	200	356	356	406	430	430
Motor	kw	5.5	5.5	11	11	15	18.5	18.5
Heating Capacity	kw	7.2	7.2	13.6	13.6	16	19	18
Thermal Oil Pump	hp	1/2×1	1/2×1	1/2×2	1/2×2	1/2×2	1/2×2	1/2×2
System Pressure	Kg/cm2	210	210	210	210	210	210	210
Machine Dimensions	mm	2275×1705 ×2900	2135×1240 ×2870	3610×2000 ×3730	2275×2095 ×3715	2750×2130 ×3780	2900×2355 ×4400	3000×2345 ×4470
Machine Weight	kg	2300	2200	5800	6500	6800	8500	7500

Notes: the form only list out the normal standard model, more special models can be customized to order.

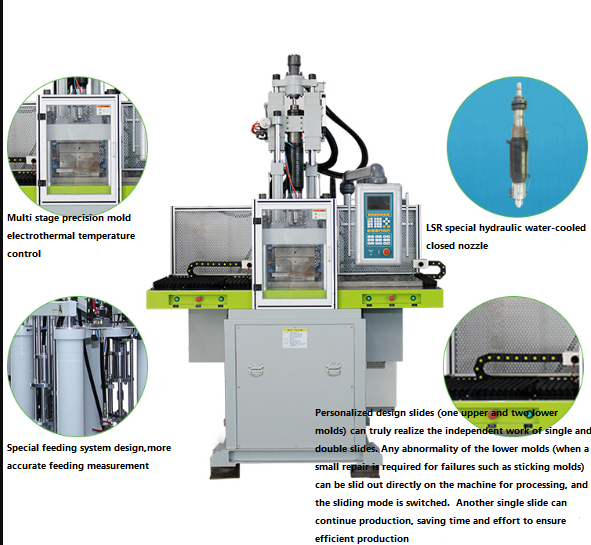

Video Technical Support for Liquid Silicone Rubber Injection Molding Machine After Images
