liquid silicone and capsule injection molding presses machine

Product Categories

Nanjing Geekung Hydraulic Machinery Co., Ltd

Contact Now

Name: liquid silicone and capsule injection molding presses machine
Brand: Geekung
Price: 50 USD

Place of Origin : Jiangsu, China

Condition : New

Video outgoing-inspection : Provided

Machinery Test Report : Provided

Warranty of core components : More than 5 years

Core Components : PLC, Engine, Motor, Pressure vessel, Gear, Pump

Brand Name : Geekung

Machine Type : Rubber Injection Machine

Voltage : 220V/380V/415V/440V

Dimension(L*W*H) : 2275x2095x3715

Weight : 8000

Warranty : 1 Year

Key Selling Points : Famous brand PLC

Showroom Location : None

Applicable Industries : Manufacturing Plant

color : customer choose

Power(W) : 11KW

After-sales Service Provided : Field installation, commissioning and training

After Warranty Service : Video technical support

Certification : CE,ISO

Marketing Type : New Product 2020

Packaging Details : plastic film in container or wooden case

Port : Shanghai

Supply Ability : 10 Set/Sets per Month

Price : $50,000.00/sets >=1 sets

Payment Terms : T/T

Contact Now

Product Description

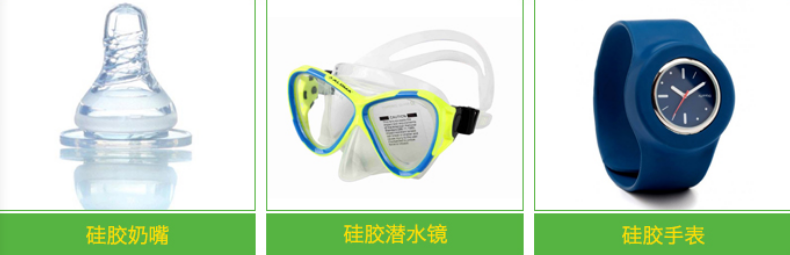

APPLICATIONS: Ideal for the production for below products

liquid silicone and capsule injection molding presses machine

Description

liquid silicone and capsule injection molding presses machine

Specification

Model		JC-RH50-250CC	JC-RH65-250CC	JC-RH200-1000CC(A)	JC-RH200-1000CC(B)	JC-RH260-1500CC	JC-RH300(A)	JC-RH300(B)
Shot Voolume	C.C	300	300	(1000)~1500	(1000)~1500	(1500)~2000	(2000)~3000	(2000)~3000
Injection pressure	Kg/cm2	1700-1800	1700-1800	1700-1800	1700-1800	1700-1800	1700-1800	1700-1800
Lnjection Hydraulic pressure	Kg/cm2	150	150	150-160	150-160	150-160	150-160	150-160
Screw Diameter	mm	32	32	45	45	45	50	50
Screw Speed	Rpm/min	0-120	0-120	0-120	0-120	0-120	0-120	0-120
Material Size	mm	10×30	10×30	12×50	12×50	12×50	15×60	15×60
Clamping Force	TON	60	60	200	200	260	300	300
Piston Stroke	mm	360	370	460	460	580	510	510
Plate Size	mm	350×380	290×320	480×500	550×620	520×580	650×730	550×650
Space Between Tie Bar	mm	445	390	575	675	645	790	690
Piston Diameter	mm	180	200	356	356	406	430	430
Motor	kw	5.5	5.5	11	11	15	18.5	18.5
Heating Capacity	kw	7.2	7.2	13.6	13.6	16	19	18
Thermal Oil Pump	hp	1/2×1	1/2×1	1/2×2	1/2×2	1/2×2	1/2×2	1/2×2
System Pressure	Kg/cm2	210	210	210	210	210	210	210
Machine Dimensions	mm	2275×1705 ×2900	2135×1240 ×2870	3610×2000 ×3730	2275×2095 ×3715	2750×2130 ×3780	2900×2355 ×4400	3000×2345 ×4470
Machine Weight	kg	2300	2200	5800	6500	6800	8500	7500

Model		JC-RH400	JC-RH500	JC-Rl400-2000CC	JC-Rl580-3000CC	JC-Rl700-5000CC
Shot Voolume	C.C	(3000)~5000	(3000)~7000	(2000)~3000	(3000)~5000	(5000)~10000
Injection pressure	Kg/cm2	1700-1800	1700-1800	1700-1800	1700-1800	1700-1800
Lnjection Hydraulic pressure	Kg/cm2	150-160	150-160	150-160	150-160	150-160
Screw Diameter	mm	50	50	50	50	50
Screw Speed	Rpm/min	0-120	0-120	0-120	0-120	0-120
Material Size	mm	15×60	15×60	15×60	15×60	15×60
Clamping Force	TON	400	500	400	580	700
Piston Stroke	mm	510	580	650	650	700
Plate Size	mm	750×800	750×850	600×650	700×720	750×900
Space Between Tie Bar	mm	930	915	680	805	910
Piston Diameter	mm	500	560	495	600	657
Motor	kw	18.5	22	18.5	22	37
Heating Capacity	kw	19.6	22	19.6	23.2	30.4
Thermal Oil Pump	hp	1/2×2	1/2×2	1/2×2	1/2×2	1/2×2
System pressure	Kg/cm2	210	210	210	210	210
Machine Dimensions	mm	3075×2575 ×4470	3120×2575×54	2885×2275×4350	3020×2422×4335	3200×2465×5100
Machine Weight	kg	8500	9500	7800	10500	14000

liquid silicone and capsule injection molding presses machine Images
