Customizable Platen Hot Vulcanizing/Curing Press for Rubber Mat/Solid Tire/PVC Flooring

Product Categories
Nanjing Geekung Hydraulic Machinery Co., Ltd
Contact Now

Customizable Platen Hot Vulcanizing/Curing Press for Rubber Mat/Solid Tire/PVC Flooring

Place of Origin : China

Condition : New

Brand Name : Geekung

Machine Type : Plate Vulcanizing Press

Voltage : 110V-480V 50/60HZ

Dimension(L*W*H) : according to the model

Weight : according to the model

Warranty : 1 Year

Key Selling Points : Long Service Life

Showroom Location : Turkey

Applicable Industries : Manufacturing Plant

After Warranty Service : Video technical support, Online support, Spare parts, Field maintenance and repair service

Local Service Location : Turkey

After-sales Service Provided : Engineers available to service machinery overseas

Color : Custom Made

Certification : ISO CE

Packaging Details : plastic film package

Port : Shanghai

Supply Ability : 200 Set/Sets per Year

Price : $10,000.00 - $99,999.00/sets

Payment Terms : T/T

Contact Now

Product Description

Platen Hot Press/Plate Vulcanizing Press/Plate Press/Curing Press for Rubber mat/solid tire/rubber flooring/pvc flooring:
(rubber plate press, rubber hot plate press,rubber curing press,hot press for pvc flooring,rubber plate vulcanizing press,hot press for rubber,plate vulcanizing press for rubber,press machine for kinds of rubber products,like rubber mat,rubber plate,rubber flooring,pvc flooring,solid tire,etc.)
Specification

Model
Clamping force
(Ton)
Working Pressure
(Mpa)
Plate size
(mm)
Plates distance
(mm)
Max. Stroke
(mm)
Heating Power
(KW)
Motor Power
(KW)
XLBD-25T
25
16
300x300
100
250
4.8
3
XLBD-50T
50
16
400x400
150
300
9
3
XLBD-63T
63
16
500x500
150
300
12
4
XLBD-100T
100
16
800x800
200
300
14
3
XLBD-160T
160
16
750x850
125
600
16
3
XLBD-200T
200
18
800x800
250
300
20
7.5
XLBD-315T
315
18
1000x1000
250
300
24
11
XLBD-500T
500
18
1100x1100
250
350
30
15
XLBD-630T
630
18
1200x2000
300
350
35
15
XLBD-1000T
1000
18
1200x1200
300
350
35
18.5
XLBD-1250T
1250
18
1500x1200
300
400
40
18.5

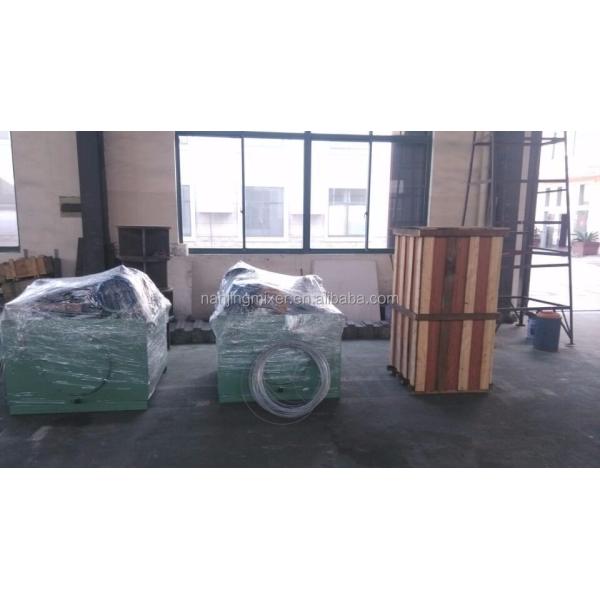

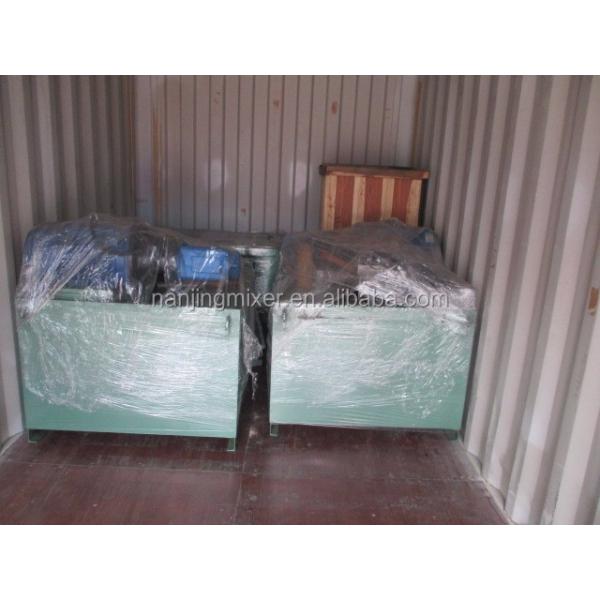

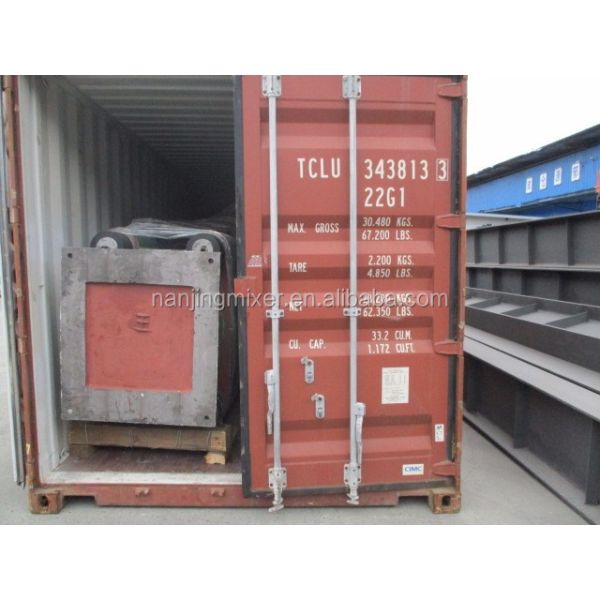

Packaging & Shipping
