lab hydraulic rubber forklift tire vulcanizing curing press machine

Product Categories

Nanjing Geekung Hydraulic Machinery Co., Ltd

Contact Now

Name: lab hydraulic rubber forklift tire vulcanizing curing press machine
Brand: Geekung
Price: 10 USD

Place of Origin : Jiangsu, China

Condition : New

Video outgoing-inspection : Provided

Machinery Test Report : Provided

Warranty of core components : 5 years

Core Components : PLC, Engine, Bearing, Motor, Gear

Brand Name : Geekung

Machine Type : Plate Vulcanizing Press

Voltage : 220V/380V/415V/440V

Dimension(L*W*H) : 1820x1066x3760

Weight : 30

Warranty : 1 Year

Key Selling Points : Famous brand PLC

Showroom Location : None

Applicable Industries : Manufacturing Plant

Color : Custom Made

Power(W) : 22.5KW

After-sales Service Provided : Field installation, commissioning and training

After Warranty Service : Field maintenance and repair service

Marketing Type : New Product 2020

Packaging Details : Plastic film package

Port : Shanghai

Supply Ability : 10 Set/Sets per Quarter

Price : $10,000.00 - $99,999.00/sets

Payment Terms : T/T

Contact Now

Product Description

hydraulic tire press/tire vulcanizing press machine/hydraulic tire curing press

Application: for various kinds of soild rubber tires.

Specification

Technical parameter

Model	Q812x812x2	Q900x900x1	Q1066x1066x1	Q1200x1200x1	Q1500x1500x1
Name	Solid tire press	Solid tire press	Solid tire press	Solid tire press	Solid tire press
Nominal clamping force (MN)	2.5	5.0	7.5	6.0	12.0
Plate size(MM)	812x812	900x900	1066x1066	1200x1200	1500x1500
Unit pressure of the plate(Mpa)	3.8	6.2	6.6	4.2	5.3
Dayligh opening(MM)	775	736	832	520	520
Layers	2	1	1	2	2
Max.piston stroke(MM)	965	736	863	600	600
Plunger diameter(MM)	500	650	600	650	900
Work hydraulic pressure(Mpa)	13	15	15	18	19
Max.steam pressure(Mpa)	0.8	0.8	0.8	0.8	0.8
Motor power(KW)	7.5	13	22.5	13	26
Dimension(MM)	1340x812x4110	1500x900x3310	1820x1066x3760	2200x1400x44000	2520x1500x51100
Weight(T)	12	19	30	20	44

CE CERTIFICATE:

lab hydraulic rubber forklift tire vulcanizing curing press machine

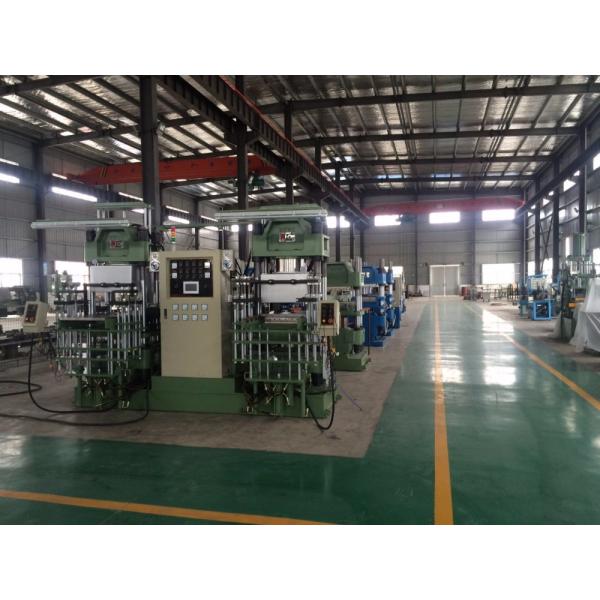

Workshop:

lab hydraulic rubber forklift tire vulcanizing curing press machine

lab hydraulic rubber forklift tire vulcanizing curing press machine Images
