Highly 20000T Eva Foaming Hydraulic Vulcanizing Press Machine

Product Categories

Nanjing Geekung Hydraulic Machinery Co., Ltd

Contact Now

Highly 20000T Eva Foaming Hydraulic Vulcanizing Press Machine

Name: Highly 20000T Eva Foaming Hydraulic Vulcanizing Press Machine
Brand: Geekung
Price: 20 USD

Quality Highly 20000T Eva Foaming Hydraulic Vulcanizing Press Machine for sale

Place of Origin : Jiangsu, China

Condition : New

Video outgoing-inspection : Provided

Machinery Test Report : Provided

Warranty of core components : 5 years

Core Components : PLC, Engine, Bearing, Motor, Gear

Brand Name : Geekung

Machine Type : foaming press

Voltage : 220V/380V/415V/440V/480V

Weight : 20000

Warranty : 1 Year

Key Selling Points : Famous brand PLC

Showroom Location : None

Applicable Industries : Manufacturing Plant

Color : Custom Made

Power(W) : 30KW

After-sales Service Provided : Field installation, commissioning and training

After Warranty Service : Video technical support

Certification : CE,ISO

Marketing Type : New Product 2020

Packaging Details : Vacuum plastic film packed

Port : Shanghai

Supply Ability : 30 Set/Sets per Month

Price : $20,000.00/sets >=1 sets

Payment Terms : T/T

Contact Now

Product Description

eva foaming vulcanizing press/eva press machine/hydraulic the press

This vulcanizing press is used for foaming EVA, PE rubber, which are widely used in shoe material manufacturing, foaming floor, EVA mat,EVA puzzle,thermal insulation material, luggage liner, sporting buffer material, diving dress material and life vest material, etc.

Specification

m	Model	Total pressure	Cylinder diameter	Platen size	Daylight	Layers	Column Span	Motor power
m	Model	Ton	mm	mm	mm	Layers	mm	kw
1	MXF-250T	250	380	800*1000	140	4	1000	7.5
2	MXF-300T	300	450	900*1100	150	4	1000	7.5
3	MXF-500T	500	560	1000*1200	150	4	1300	11
4	MXF-650T	650	650	1100*1350	150	6	1400	11
5	MXF-850T	850	762	1200*1500	150	6	1600	15
6	MXF-1000T-A	1000	813	1350*1700	150	6	1800	22
7	MXF-1000T-B	1000	813	1200*1500	150	6	1500	22
8	MXF-1100T	1100	838	1350*1700	150	6	1800	22
9	MXF-1350T-A	1350	915	1350*1800	180	6	1800	22
10	MXF-1350T-B	1350	915	1350*1500	150	6	1500	22
11	MXF-1650T-A	1650	1016	1400*2200	180	6	1800	30
12	MXF-1650T-B	1650	1016	1500*2400	200	9	2200	30

Detailed Images

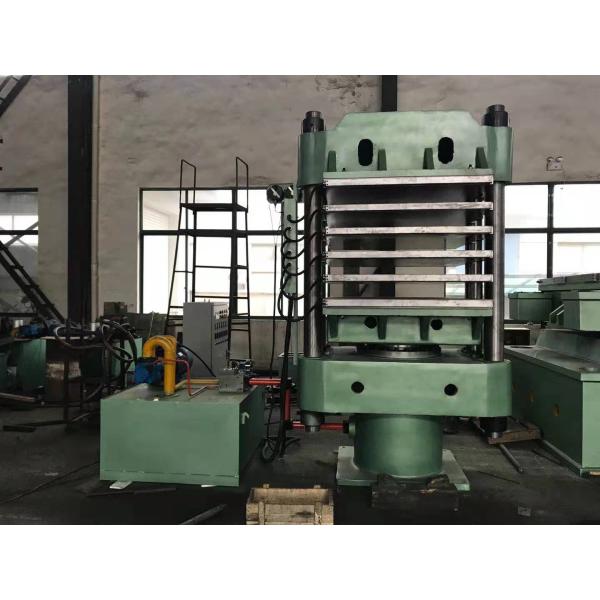

Highly 20000T Eva Foaming Hydraulic Vulcanizing Press Machine

Highly 20000T Eva Foaming Hydraulic Vulcanizing Press Machine Images
