Rubber Injection Molding Press/Vulcanizing Machine Competitive price

Name: Rubber Injection Molding PressVulcanizing Machine Competitive price
Brand: Geekung
Price: 35 USD

Quality Rubber Injection Molding Press/Vulcanizing Machine Competitive price for sale

Place of Origin : Jiangsu, China

Condition : New

Video outgoing-inspection : Provided

Machinery Test Report : Provided

Warranty of core components : 5 years

Core Components : PLC, Engine, Bearing, Motor, Gear

Brand Name : Geekung

Machine Type : Rubber Injection Machine

Voltage : 220V/380V/415V/440V

Dimension(L*W*H) : 2900x2355 x4400mm

Weight : 8500

Warranty : 1 Year

Key Selling Points : Famous brand PLC

Showroom Location : None

Applicable Industries : Manufacturing Plant

Rubber Vulcanizing : Continuous Production

Power(W) : 18.5KW

After-sales Service Provided : Field installation, commissioning and training

After Warranty Service : Video technical support

Certification : CE,ISO

Marketing Type : New Product 2020

Packaging Details : wooden case and plastic film packed in container

Port : Shanghai

Supply Ability : 5 Set/Sets per Month

Price : $35,000.00/sets >=1 sets

Payment Terms : T/T

Contact Now

Product Description

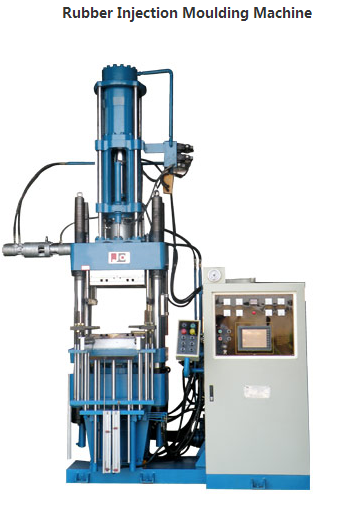

Rubber Injection Molding Machine/Rubber Injection Machine/Rubber Injection Press/Rubber Injection Vulcanizing Machine

APPLICATIONS: Ideal for the production of natural &synthetic rubber,oil & heat resistant rubber, and reclaimed rubber.

Low bed structure
Equipped with standard PLC controller
Patented anti-spill device
Patented material feeding device
Custom specifications are available

Rubber Injection Molding Machine is ideal equipment for the production of natural &synthetic rubber,oil & heat resistant rubber, and reclaimed rubber.

Highlights of our rubber injection molding machine:

1.Mold handling (ejectors) system: 2RT/3RT/4RT;

2.Pressure & Speed control: proportional pressure and proportional flow control from PLC ensure the operation more stable, can control each movement reliably without causing shock.

3.Safety :all machine movements must immedatiatey stop if operator hand blocks the light curtain. Safety interlock for movements,fool-proof design.Replacement time of lubrication oil can be set up from touch screen and auto alarm.Two button simultaneous pressing must be required to start the operation (Optional).

4. Parallelism of heating platens:0.05mm PER 300mm,precision curing&moulding finishing.

5.PLC programmable controller + touch screen HMI, technical parameters setting is convenient and easy,recipes are storable.The whole process is monitored;internal fault is diagnosed and alarmed automatically.

6.Precise positioning when moving in or out the mold.

7.Mold temperature control accuracy is ±1℃.

Specification

Rubber Injection Molding Press/Vulcanizing Machine Competitive price

Detailed Images

Rubber Injection Molding Press/Vulcanizing Machine Competitive price

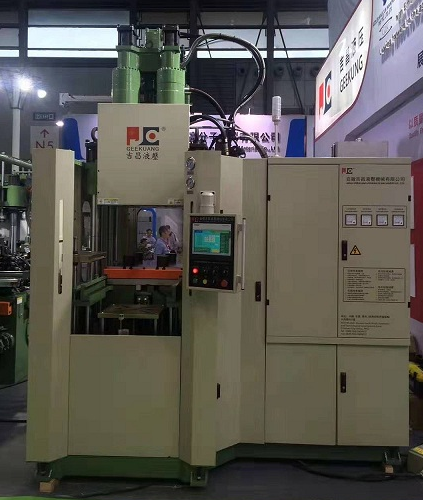

Vertical type rubber injection moulding machine

Rubber Injection Molding Press/Vulcanizing Machine Competitive price
