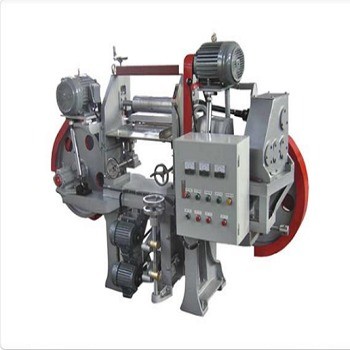

eva foam sheet/sole bandknife splitting machine

Name: eva foam sheetsole bandknife splitting machine
Brand: Mixer
Price: 12 USD

Quality eva foam sheet/sole bandknife splitting machine for sale

Place of Origin : China

Brand Name : Mixer

Type : Bandknife Splitting Machine

Condition : New

Video outgoing-inspection : Provided

Machinery Test Report : Provided

Warranty of core components : More than 5 years

Core Components : PLC, Engine, Bearing, Motor, Gear

Voltage : 380V,220V,480V

Dimension(L*W*H) : 3900x1150x2100mm

Warranty : 1 year after shipment

Key Selling Points : High-accuracy

Power (kW) : 11 kW

Weight (KG) : 3200 KG

Applicable Industries : Manufacturing Plant

Showroom Location : None

Splitting machine : EVA/PE foam sheet splitting machine

Slicing Machine : Rubber Cork,CR,EPDM foam sheet

Power(W) : 11KW

Weight : 3200

After Warranty Service : Field maintenance and repair service

Packaging Details : film wrap into container

Port : Shanghai

Supply Ability : 60DAYS

Price : $12,000.00/sets >=1 sets

MOQ : 1set

Delivery Time : 60days

Payment Terms : T/T

Contact Now

Product Description

splitting machine/eva foam splitting machine /eva rubber machines

EVA Splitting Machine/Bandknife Splitting Machine for EVA/PE foam sheet ; Bandknife Splitting Machine for SBR/EPDM Rubber Foam sheet Slicing Machine :

Application:

The machine is applied to splitting the foamed rubber cork, foamed EVA, PE, etc. at a high speed and precision.

Features:

1. Cutter with holder plate is spray welded with tingsten, featuring abrasion resistant, non-deformation and it doesn’t clamp the cutter.

2. The speed is controlled through a powerful mechanic gearbox, featuring speedy change without reducing the power, lower failure rate.

3. The splitting thickness is set by the digital switch, featuring high precision.

4. The splitting thickness is set by the digital switch, featuring high precision. The main components, like motor, gear box, drive bearing, electric elements, are all made from Taiwan or Japan brand, with reliable and stable performance, making sure the machine with longer service life.

Specification

Item	Contents	Data
1	Slicing width	1800 mm
2	Slicing Thickness	0.3-120 mm
3	Slicing Hardness	10°-80°
4	Slicing Speed	10M-40 M/min
5	Slicing Precision	±0.05 m/m Or ±5%
6	Drive Power	11KW
7	Band knife Dimension	1.0×90×8100m/m
8	Machine Dimension	3900×1150×2100 mm
9	Equipment Weight	3200KG

eva foam sheet/sole bandknife splitting machine

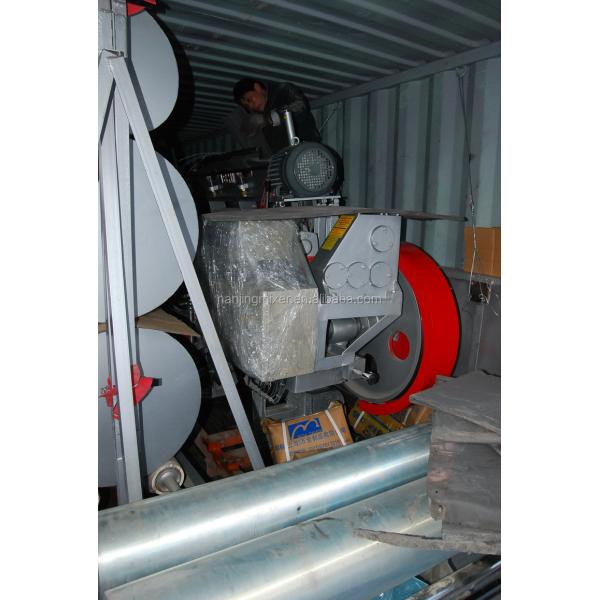

Packaging & Shipping

eva foam sheet/sole bandknife splitting machine

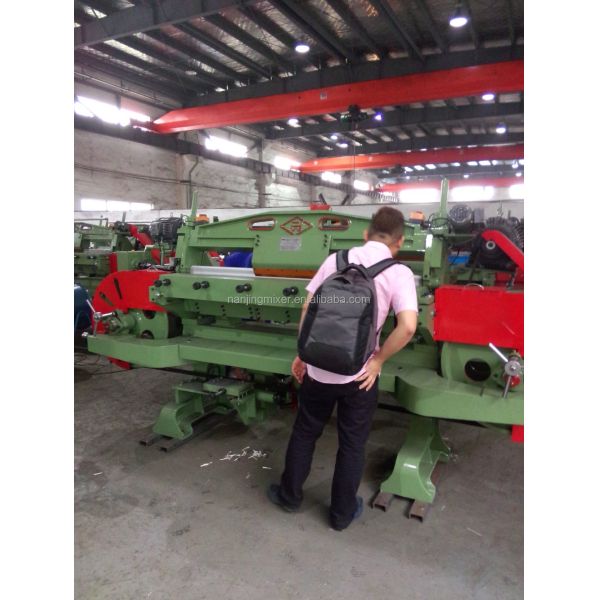

eva foam sheet/sole bandknife splitting machine Images
