pe & eva sponge splitting machine skiving machine with CE certificate

Name: pe amp eva sponge splitting machine skiving machine with CE certificate
Brand: Mixer
Price: 16 USD

Quality pe & eva sponge splitting machine skiving machine with CE certificate for sale

Place of Origin : China

Brand Name : Mixer

Type : Bandknife Splitting Machine

Condition : New

Video outgoing-inspection : Provided

Machinery Test Report : Provided

Warranty of core components : 5 years

Core Components : PLC, Engine, Bearing, Pressure vessel, Gear

Voltage : 380V,220V,480V

Dimension(L*W*H) : 3900x1150x2100mm

Warranty : 1 Year

Key Selling Points : Multifunctional

Power (kW) : 11 kW

Weight (KG) : 3200 KG

Applicable Industries : Manufacturing Plant

Showroom Location : None

Splitting machine : EVA/PE/SBR/CR sheet

Power(W) : 11KW

Weight : 3200

After-sales Service Provided : Field installation, commissioning and training

After Warranty Service : Video technical support

Certification : CE

Packaging Details : film wrap into container

Port : Shanghai

Supply Ability : 60DAYS

Price : $16,900.00/sets >=1 sets

MOQ : 1set

Delivery Time : 60days

Payment Terms : T/T

Contact Now

Product Description

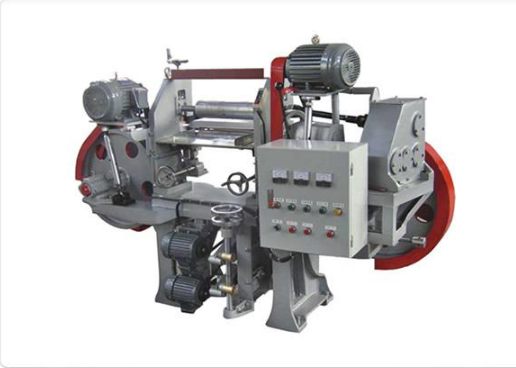

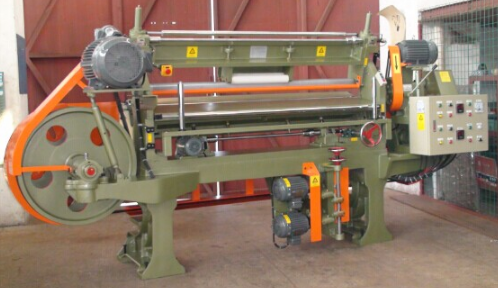

Rubber Cork Foam Sheet Splitting Machine/Rubber Cork Foam Slicing Machne/Rubber Cork Foam Skiving Machine with CE certificate

Application:

The machine is applied to splitting the foamed rubber cork, foamed EVA, PE,CR, etc. at a high speed and precision.

Features:

1. Cutter with holder plate is spray welded with tingsten, featuring abrasion resistant, non-deformation and it doesn’t clamp the cutter.

2. The speed is controlled through a powerful mechanic gearbox, featuring speedy change without reducing the power, lower failure rate.

3. The splitting thickness is set by the digital switch, featuring high precision.

4. The splitting thickness is set by the digital switch, featuring high precision. The main components, like motor, gear box, drive bearing, electric elements, are all made from Taiwan or Japan brand, with reliable and stable performance, making sure the machine with longer service life.

Specification

Item	Contents	Data
1	Slicing width	1800 mm
2	Slicing Thickness	0.3-120 mm
3	Slicing Hardness	10°-80°
4	Slicing Speed	10M-40 M/min
5	Slicing Precision	±0.05 m/m Or ±5%
6	Drive Power	11KW
7	Band knife Dimension	1.0×90×8100m/m
8	Machine Dimension	3900×1150×2100 mm
9	Equipment Weight	3200KG

Packaging & Shipping

pe & eva sponge splitting machine skiving machine with CE certificate

pe & eva sponge splitting machine skiving machine with CE certificate Images
