300kgh epdm rubber hose extruder machine

Place of Origin : Jiangsu, China

Condition : New

Output (kg/h) : 1500 kg/h

Screw diameter (mm) : 150 mm

Screw L/D Ratio : 16:1

Video outgoing-inspection : Provided

Machinery Test Report : Provided

Warranty of core components : 5 years

Core Components : PLC, Engine, Bearing, Gear

Brand Name : Mixer

Voltage : 380V

Dimension(L*W*H) : :3500x1580x1550mm

Power (kW) : 185

Weight (KG) : 8000 KG

Warranty : 1 Year

Key Selling Points : Energy saving

Showroom Location : None

Applicable Industries : Manufacturing Plant

Type : Rubber Extruder

L/D : (10-18):1

Screw Speed (RPM) : 45

Output (Kg/h) : 1200

Power(W) : 75-255kw

Weight : 8000KG

After-sales Service Provided : Field installation, commissioning and training

After Warranty Service : Video technical support

Certification : CE

Marketing Type : New Product 2020

Packaging Details : Film packed in container.

Port : Shanghai

Supply Ability : 20 Set/Sets per Month

Price : $10,000.00 - $99,999.00/sets

Contact Now

Product Description

Rubber Extruder

Rubber Extruders are usually designed to extruder rubber semi-finished articles for tire industry, such as sidewalls, treads or apex. They can also be equipped with different heads and become perfect for profile extrusion. Different sizes and configurations are possible: type of head, die size, clamp type
The Rubber Extruder machine is widely used in rubber hose ,inner tube, rubber sheets,rubber seals,
tread rubber, and other rubber products' extrusion and formation.It also can be used to supply rubber
for calender.
We produce 2 types: hot feed rubber extruder and cold feed rubber extruder.

Specification

Model/Diameter (mm)
L/D
Power (KW)
Screw Speed (RPM)
Output (Kg/h)
XJD-60
(6-16):1
11-37
80
120
XJD-90
(10-20):1
30-75
60
350
XJD-120
(10-18):1
45-110
50
650
XJD-150
(10-18):1
75-255
45
1200
XJD-200
(10-18):1
185-355
28
2200
XJD-250
(4-12):1
185-500
26
3000

Description

Technical description:

Extruder:

Screw:

A.Material:38CrMoALA.

B.Nitriding surface treatment.

C.Hardness≥HRC62,Nitrogen depth≥0.55mm

D.Structure:

a. The screw is bored structure for temperature control.

b.The rotation of the threaded rotary joint is in the same direction of the screw rotation.

c.The screw is inspected by 10kg/cm2 water pressure for more than 1 hour, ensure no leakage.

d.Screw head size standards by enterprisesd

Barrel and bushing:

A.Barrel

a. pin type structure, axial drilling cooling

b. Number of pins: 10 rows, number of pins per row: 8 pins, material: 40Cr quenching

BBushing:

a.Material:38CrMoALA:

b..Surface is nitrided treatment; th

c.Hardness≥HRC66,nitriding depth≥0.55mm

Feeding rollers: the structure owns National patent, patent no.: ZL 2007 2 0193084.0

A.Material:38CrMoALA, roll surface is nitrided, hardness≥HRC62,nitriding depth≥0.5mm

B.structure:

a. Internally circulated water, can be connected to the rotary joint:

b uses a fully enclosed structure.

c. Feed roller gear is made of 20CrMoTi material, surface charcoal treatment, carburizing

Both depths are 1.5mm

d. The feeding roller is driven by the output shaft of the reducer through the gear, and the speed ratio gear has sufficient strength and wear resistance.

e. The speed ratio gear is greased, and the feed roller bearing is greased.

Detailed Images

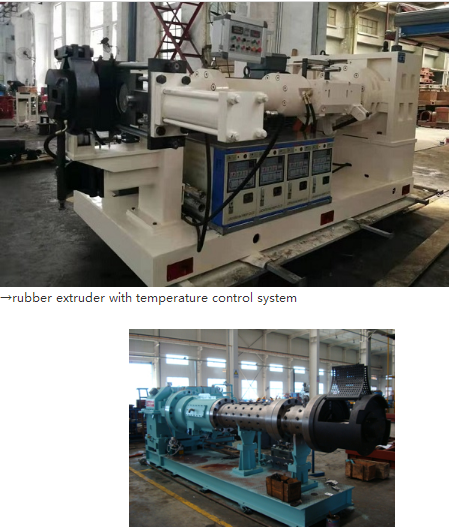

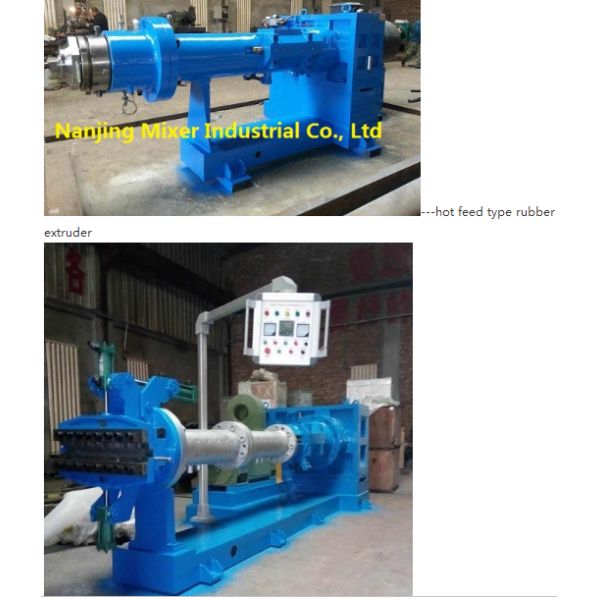

300kgh epdm rubber hose extruder machine

300kgh epdm rubber hose extruder machine

300kgh epdm rubber hose extruder machine

300kgh epdm rubber hose extruder machine

300kgh epdm rubber hose extruder machine
