Video Technical Support After Service Automatic EVA Sole Die Cutting Machine

Product Categories

Nanjing Geekung Hydraulic Machinery Co., Ltd

Contact Now

Name: Video Technical Support After Service Automatic EVA Sole Die Cutting Machine
Brand: Mixer
Price: 6 USD

Place of Origin : Jiangsu, China

Condition : New

Warranty : 1 Year

Weight (KG) : 800

Video outgoing-inspection : Provided

Machinery Test Report : Provided

Warranty of core components : 1 Year

Core Components : PLC, Engine, Motor

Brand Name : Mixer

Key Selling Points : Famous brand PLC

Applicable Industries : Manufacturing Plant

Showroom Location : None

Color : Customer Request

After-sales Service Provided : Video technical support

After Warranty Service : Video technical support

Marketing Type : Ordinary Product

Packaging Details : wooden with film

Port : shanghai

Supply Ability : 20 Set/Sets per Month

Price : $6,000.00/sets >=1 sets

Contact Now

Product Description

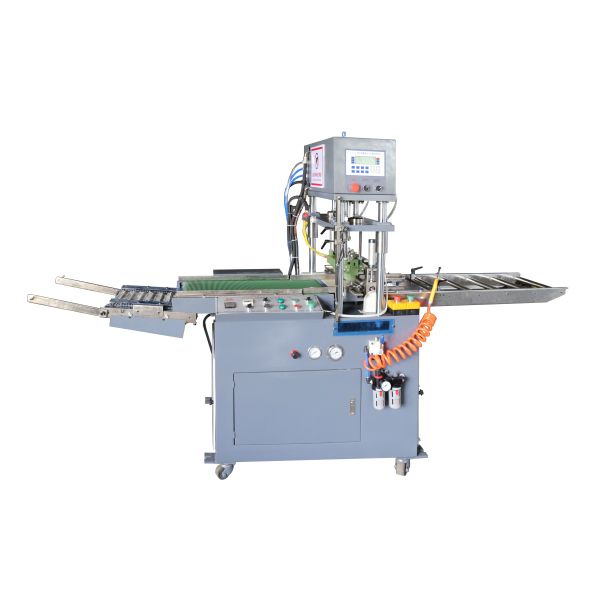

Automatic EVA Sole Die Cutting Machine

1.This machine is used for die cutting of the sole of EVA material, heel, half fork, and inner padding.

2.The machine adopts heating principle to reduce machine damage and reduce energy consumption, the cut effect

of material has smooth edges and beautiful appearance.

3.The sole cutting machine is fully automatic punching, saving labor, reducing labor intensity and high efficiency,the

output is several times of the traditional cutting machine.

4.It adopts advanced computer control system, hydraulic& pneumatic and other control components, fully digital

control system, easy to set up. With high cutting precision and simple operation,it is a favorite option for the EVA

sole plants to upgrade their production.

5.This machine is the latest generation, the cutting efficiency is more than 30% higher than the previous generation.

Specification

Automatic EVA Sole Die Cutting Machine

Model Number	MCY-229
Motor Power	2.2 KW
Heating Power	2.4 KW
Max Punching Force	10T
Cutting Thickness	5-50mm
Max. Cutting stroke(sole length)	345mm
Pressure Range	0-6 Mpa (hydraulic pressure); 0.3-0.6 Mpa (penumaticpressure).
Capacity	Aroud 20000 pairs/8hours
Weight	800kg
Machine Size	L2900xW800xH1700mm

Detailed Images

Video Technical Support After Service Automatic EVA Sole Die Cutting Machine

Video Technical Support After Service Automatic EVA Sole Die Cutting Machine Images
