Video Technical Support After Service Vacuum Type Rubber Oil Ring Trimming and Deflashing Machine

Name: Video Technical Support After Service Vacuum Type Rubber Oil Ring Trimming and Deflashing Machine
Brand: Mixer
Price: 6 USD

Quality Video Technical Support After Service Vacuum Type Rubber Oil Ring Trimming and Deflashing Machine for sale

Place of Origin : China

Brand Name : Mixer

Type : Rubber Cutting Machine, Vertical type and horizontal type

Condition : New

Video outgoing-inspection : Provided

Machinery Test Report : Provided

Warranty of core components : More than 5 years

Core Components : PLC, Engine, Motor, Gear

Voltage : 220V,380V, 415V ETC

Dimension(L*W*H) : 850x850x1800MM

Warranty : 1 Year

Key Selling Points : Sustainable

Power (kW) : 4 kW

Weight (KG) : 380 KG

Applicable Industries : Manufacturing Plant

Showroom Location : None

Power(W) : 4kw

Weight : 380kg

After Warranty Service : Video technical support

Certification : CE

Marketing Type : New Product 2020

Price : $6,200.00/sets >=1 sets

MOQ : 1set

Packaging Details : wooden case package

Delivery Time : 20-30days

Payment Terms : T/T

Supply Ability : 30sets per months

Contact Now

Product Description

Application:

Trimming for Kinds of rubber skeletons, oil seal, packing leather, kinds of washer, round rubber parts.

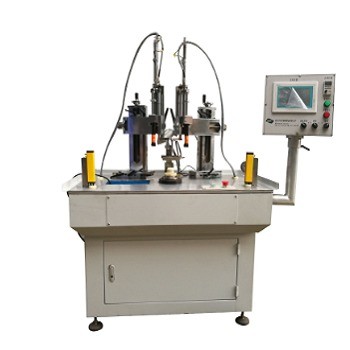

Video Technical Support After Service Vacuum Type Rubber Oil Ring Trimming and Deflashing Machine

Vacuum≤-0.035Mpa circular run out of main spindle≤0.01mmplane run out≤0.02mmSpeed of spindle:0-3000r/mincut degree:packing leather :0°~90°; oil seal:-10°~100°

cut range :10mm-200mm (adjustable)

Blade specification(ThickxWidexLength):3x3x60mmProduction capacity≥20 pcs/minMotor:0.37 kwVoltage: 220vWeight: 280kgDimension:850mm×850mm×1800mm

Technical Specification:

Structure	Vertical	Horizontal
Vacuum Degree	≤-0.035Mpa	≤-0.035Mpa
Spindle Precision	Radial run-out≤0.01mm; End face run-out≤0.02mm	Radial run-out≤0.01mm; End face run-out≤0.02mm
Shaft Speed	0-3000r/min	0-3000r/min
Cut Degree	Oil seal:20°~70°; Seal cup:0°~90°	Oil seal:20°~70°; Seal cup:0°~90°
Cut Range	φ5mm- φ200mm (adjustable)	φ5mm- φ200mm (adjustable)
Blade Size (ThickxWxLength)	3x3x60mm	3x3x60mm
Production Capacity	≥20 pcs/min	≥20 pcs/min
Motor	0.37KW	0.37KW
Voltage	220V	220V
Weight	210 kg	220 kg
Dimension(LxWxH:mm)	1020x600x1000	850x850x1800

Shipment moment

Video Technical Support After Service Vacuum Type Rubber Oil Ring Trimming and Deflashing Machine

Exhibition

Video Technical Support After Service Vacuum Type Rubber Oil Ring Trimming and Deflashing Machine
