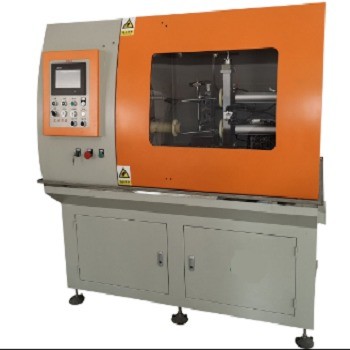

Sustainable 1200x800x1210mm Automatic Hand Rotary Rubber Plastic Washer/Gasket Cutter

Product Categories

Nanjing Geekung Hydraulic Machinery Co., Ltd

Contact Now

Sustainable 1200x800x1210mm Automatic Hand Rotary Rubber Plastic Washer/Gasket Cutter

Name: Sustainable 1200x800x1210mm Automatic Hand Rotary Rubber Plastic WasherGasket Cutter
Brand: Mixer
Price: 8 USD

Quality Sustainable 1200x800x1210mm Automatic Hand Rotary Rubber Plastic Washer/Gasket Cutter for sale

Place of Origin : China

Brand Name : Mixer

Type : Rubber Cutting Machine, Single shaft and double shaft

Condition : New

Video outgoing-inspection : Provided

Machinery Test Report : Provided

Warranty of core components : 1 Year

Core Components : Bearing, Gearbox

Voltage : 220V,380V, 415V ETC

Dimension(L*W*H) : 1200x800x1210mm

Warranty : 1 Year

Key Selling Points : Sustainable

Power (kW) : 1.4 kW

Weight (KG) : 300 KG

Applicable Industries : Manufacturing Plant

Showroom Location : None

After-sales Service Provided : Field installation, commissioning and training

After Warranty Service : Video technical support

Packaging Details : wooden case package

Port : Shanghai

Supply Ability : 30sets per months

Price : $8,000.00/sets >=1 sets

Certification : CE

MOQ : 1set

Delivery Time : 20-30days

Payment Terms : T/T

Contact Now

Product Description

Application:

Fast cut of all kinds of rubber, silicone gaskets/ washer, ring-shaped tubular products.

Features:

1. When the cut is finished, materials take off automatically, and through the collection boxes to gather the cut products.

2. Vacuum absorption of the cut product, so ensuring the finished product more precise.

3. Automatic air blowing function makes loading and unloading more convenient, greatly improve the product cutting efficiency;

4. Using color LCD touch screen control, operation is simple.

5. All electrical components,pneumatic components are imported from abroad or domestic famous brand products, to ensure long-term use, reliability and stability of the new machine.

6. According to customer requirements,choose to install a round blade or strip blade, ensuring cost saving on the blade.

7.There are single shaft,double shafts,4 shafts for options.

Specification

Model	JCM200-1	JCM200-2
cutting efficiency	≥60 times /min	≥60 times /min
Working rotation speed	0-3000rpm	0-3000rpm
Cut precision	≤±0.05 mm	≤±0.05 mm
Cut range	(1) Rubber diameter: Φ 10-150mm (2Cut length (standard):≤140mm; Lengthened type ≤350 (3)Rubber wall thickness: ≤ 18mm	(1) Rubber diameter: Φ10-150mm (2Cut length (standard):≤140mm; Lengthened type ≤ 350 (3)Rubber wall thickness: ≤ 20mm
Specification of blade	1.Round disc blade:Φ60* Φ25.4x0.3 2.Strip shape 3x3x60mm	1.Round disc blade: Φ60* Φ25.4x0.3 2.Strip shape 3x3x60mm
consumption of compressed air	20L/min	30L/min
Air pressure	0.5Mpa-0.8Mpa	0.5Mpa-0.8Mpa
Vacuum degree	≤ -0.035Mpa	≤-0.035Mpa
Power source	AC220V±5%	AC220V±5%
Total power	1.4 KW	3 KW
Total weight	280kg	550kg
Dimension	1200x800x1210mm	1600x900x1650mm

Shipment moment

Sustainable 1200x800x1210mm Automatic Hand Rotary Rubber Plastic Washer/Gasket Cutter

Sustainable 1200x800x1210mm Automatic Hand Rotary Rubber Plastic Washer/Gasket Cutter Images
